Hi folks on the interwebs. Was looking around for some install / integration notes. Theres a not a lot of install pics on GTL, so figured will write some notes on installing a AIO6 with the cameras and a remote on the GTL. Things you need
Chigee – Console https://www.chigee.com/products/aio-6
Chigee – Bracket https://www.chigee.com/products/mfp0225
Power -T- adapter BMW – https://www.aliexpress.us/item/3256806144398359.html (or)
alternate option: https://coyote-industries.square.site/product/ahpnp-bmw-accessory-y-harness-plug-n-play/46
Optional – Cameras https://www.chigee.com/products/cameras-aio6
Optional – Remote https://www.chigee.com/products/mfp0089
Decision :
1. Decide if you want cameras . this directs how many side panels you want to remove.
2. If going with cameras , these locations worked best for me

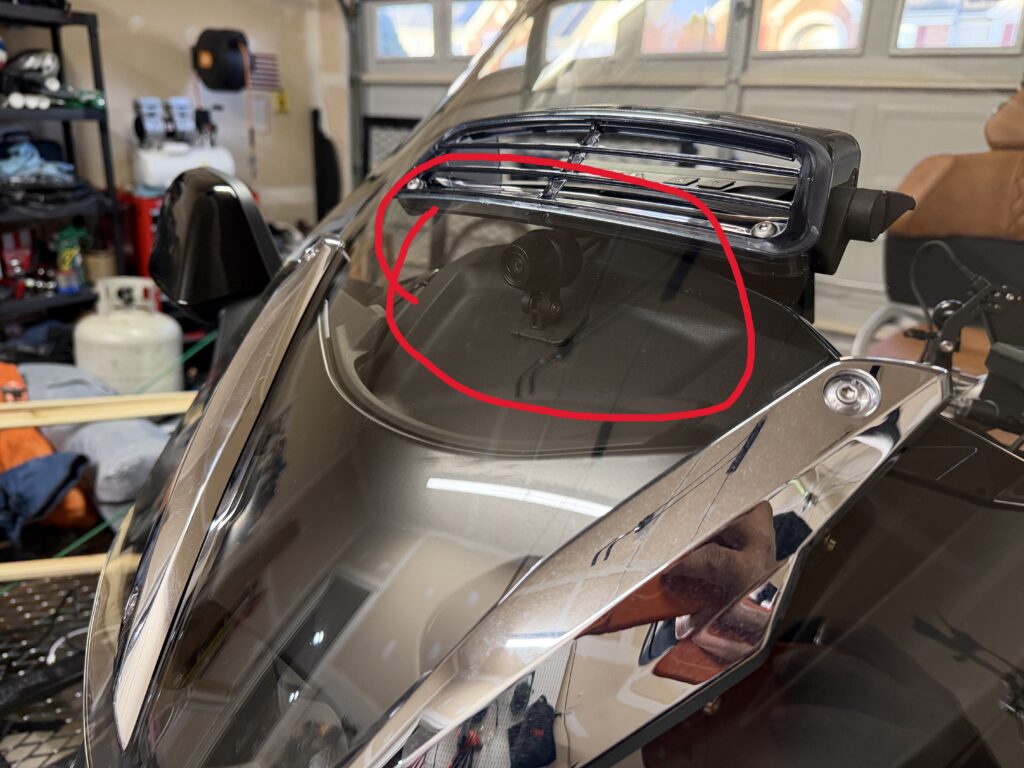

Front camera location: Behind the windshield. Less wiring running thru to the front of the radiator.
Camera angle once set is not adjustable without taking off the windshield.

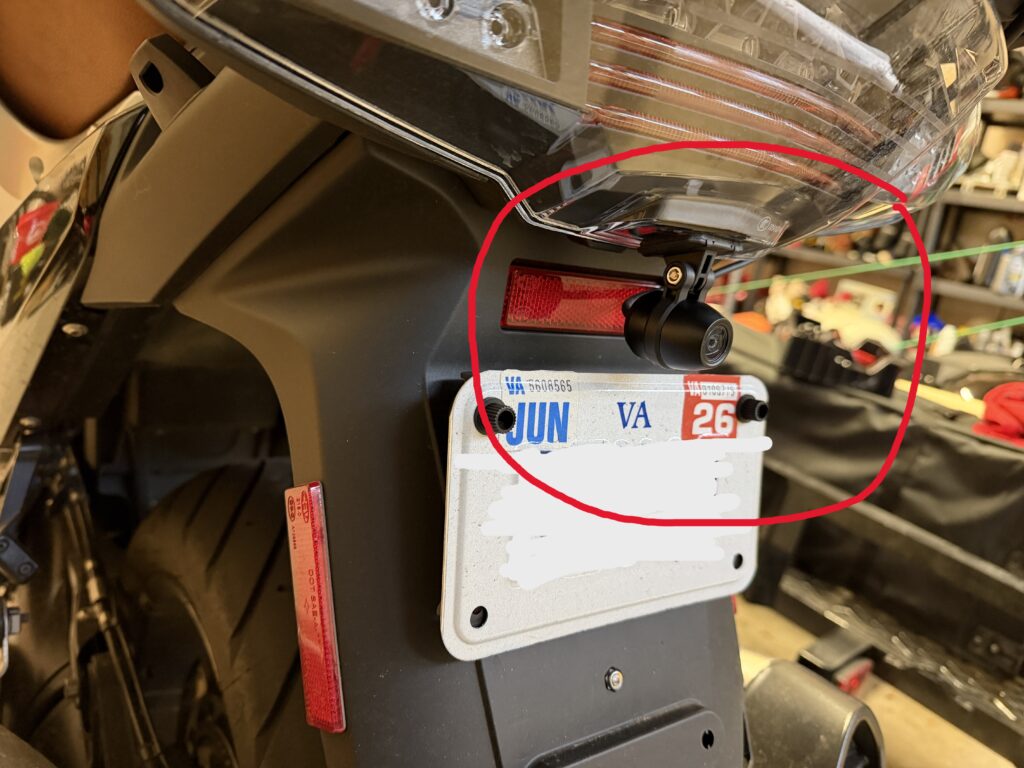

Rear camera location : Possibly the only place that can accommodate the camera without putting something on the top case.
Chigee AIO 6 Console location, its mounted on a bracket that goes behind the tft.
This guys vid was very helpful https://www.youtube.com/watch?v=mhtu-f-xBZA at the @7min mark.
The rear camera is the only one that needs the side panels taken off to run the wires next to the fuel tank and airbox. You will have to remove the speaker pods on the left and the tank side panels. This video helped a lot with the side panel removal.
https://www.youtube.com/watch?v=mJihkUXaUQ0 @9 min mark.
I. POWER :
Probably your biggest decision in this process. Decide if you want to :
1. Chigees recommended way of running power to battery + acc line
2. Tap on the power outlet behind the TFT (I decided to do this to minimize wire runs)
Everything below assumes you went #2

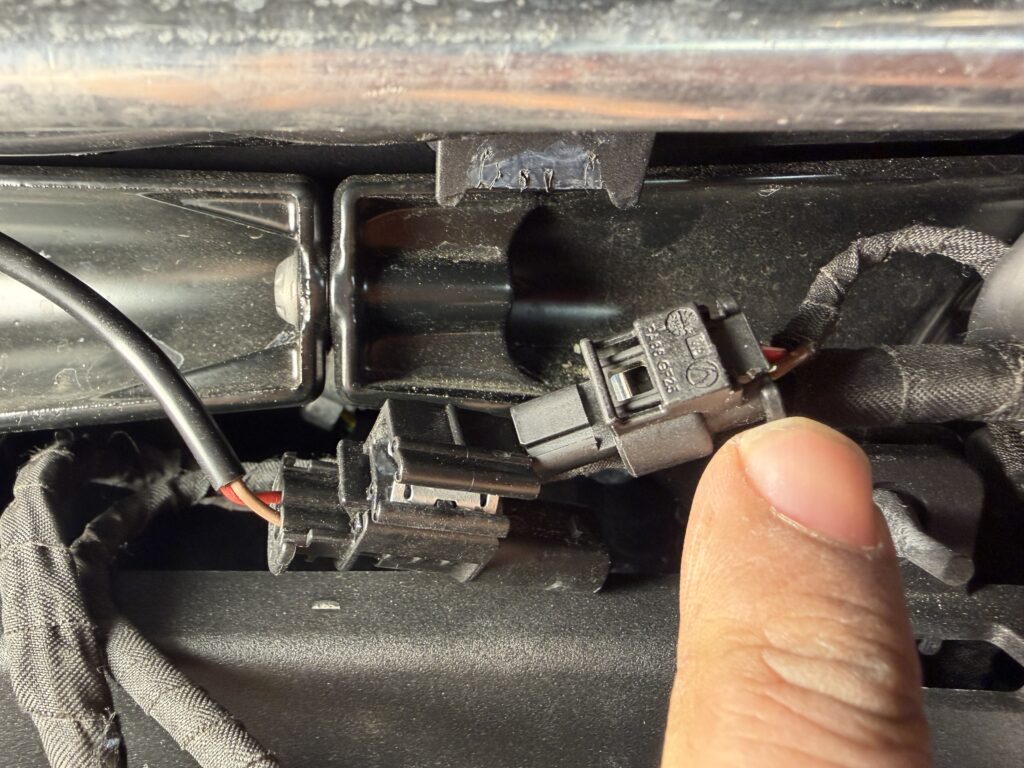

On the GTL there is power available behind the TFT , you need one of these T adapter cables (got mine from aliexpress – link above ) to run a line to your Chigee . Once you have this adapter. locate the power tap behind the tft,
Unplug and install the adapter so the circuit is still complete for the bike but you are tapping power out on the long line out.

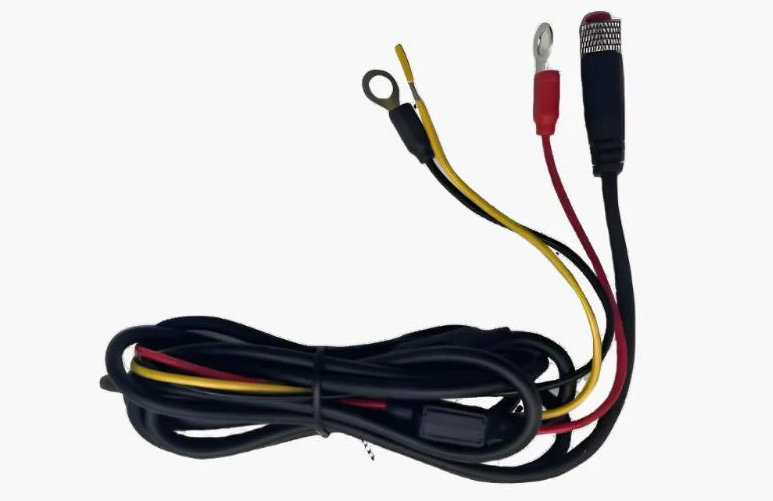

The chigee AIO6 power cable looks like this.
Black – Gnd
Red – +ve
Yellow – Line +ve ACC turns on with ignition.
Cut off the battery connector rings and merge Red + Yellow wires – Yes we are making red+ yellow as a single wire.
https://www.aliexpress.us/item/3256806144398359.html
(or)
https://coyote-industries.square.site/product/ahpnp-bmw-accessory-y-harness-plug-n-play/46

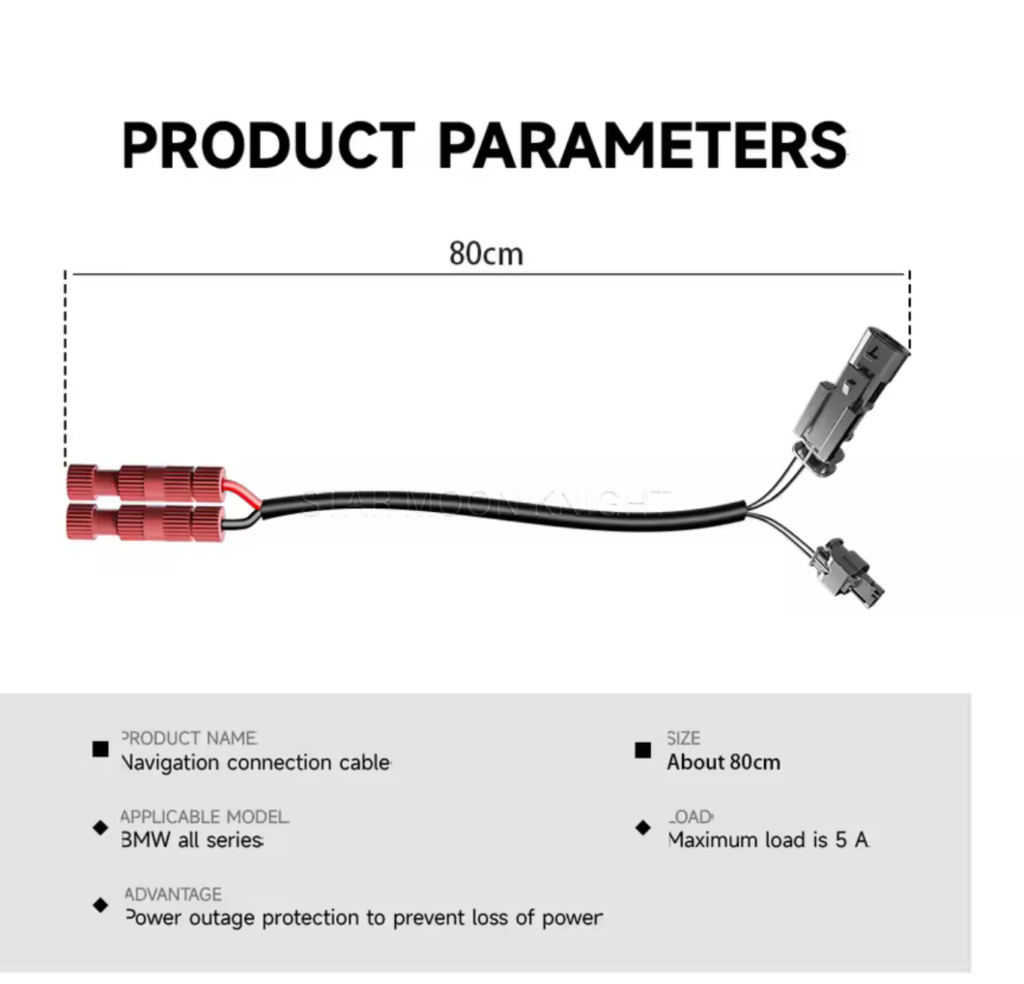

The T adapter cable looks like this,
Use the sockets to complete the bikes circuit and draw your power for chigee on the long end.
bike Red – Chigees (red+yellow)
bike Black – Chigees (black)

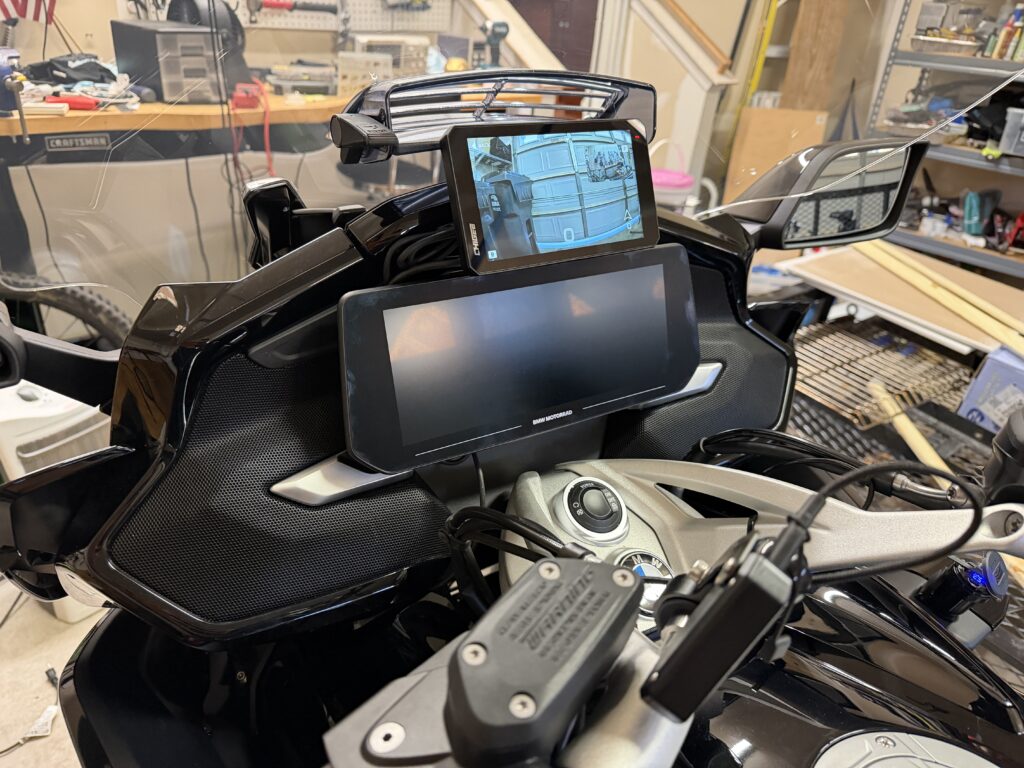

Completed Setup . Good Luck !
